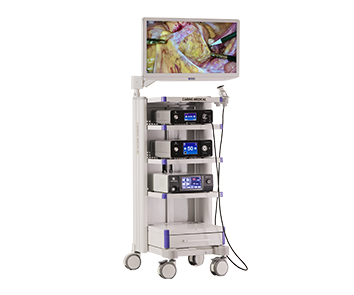

4K设备整体
1
4K设备整体
1

Product features

Higher resolution
4 times higher resolution than 1080p and 9 times higher resolution than HD imaging system
Truer and richer color reproducibility

Vividly colored in rich reproduction, which is closer to the color range visible to the human eye

A unique variety of functions makes it easier for intraoperative observation

With functions such as enhanced vascular structure, image purification, dark field adjustment, exposure correction., etc.

Larger surgical screen
An optional 55/31inches LED medical monitor provides a clearer and larger view for surgical observation

Ergonomic camera head
Multiple functions such as for brightness adjustment, White light/Blue NIR/Green NIR, Video/Still Picture recording are controlled via buttons on the camera head.

product details

Item Model Parameters specification
4K Fluorescence Imaging Unit Smart Eye 101C

Output Resolution: 4096*2160P, 3840*2160P, 1920*1080P

Image Mode: Standard, GYN, GI, Hepato

Go od imaging compatibility with arthroscopy, hysteroscopy and other

endoscopes.

Adjustment: Brightness, Contrast, Color saturation(concentration)

Signal output: 4K-HDMI*2、HD-DVI*1

LED/NIR Light Source Smart Light 101C

LED chip life ≥60000 hours

Luminous flux: 2000Lm

Brightness: adjustable by pressing the camera

button


4K Camera Head Smart Eye 101C

Sony 4K UHD CMOS

Fixed Focus/Zoom coupler (16-32mm)

Control: Brightness, White light/Blue NIR/Green

NIR, Video/Still Picture Recording


4K Laparoscope Laparoscope, Thoracoscope, etc.

10mm 30°, 10mm 0°

Autoclavable≥180cycles

Sterris and Sterrad ≥360 cycles


CO2 Insufflator CO2

40L/min with heating feature

7 "touch screen control

Sound and light alarm

Auto pressure relief


Monitor 55 or 31inches

55” or 31” 4K medical LED monitor

16:9, 3840*2160P

Signal input: HDMI, SDI, DVI


Surgical Car 4K surgical cart


can hold a 55 inches screen

Adjustable height with 360° rotation,

universal arm with storage drawer
